Table Top Slab Rollers

North Star Equipment has produced a new line of slab rollers for those with limited space in their studio. Their are three different sizes to choose from 18", 24", & 30" widths. These new table top slab rollers like the other North Star slab rollers have two rolls, much like the wringer of an old-fashioned washing machine. Both rolls have a small diamond pattern ("knurling") machined directly into the metal to grip the canvas. The bottom roll is turned by the handle, but cannot move vertically. As it turns, it drives the top roll through a train of gears. The upper roll both turns and can be adjusted up and down. The two rolls turning together pull slabs through easily, and the vertical adjustment of the top roll gives an easy-to-set and infinitely adjustable thickness from paper-thin to over 2 inches. A reference scale allows setting and repeating openings to within 1/100 of an inch.

The Table Toppers are made of moisture-resistant medex with a melamine surface. These table toppers have anti skid material on the feet. This is so your slab roller does not move when pressure is applied to the handle. The table topper fits neatly onto the slab roller itself with no adjustments necessary .

The design gives great flexibility in making slabs on any level surface. Very thin, translucent porcelain slabs and thick, heavily textured architectural slabs are easy to produce. A wide variety of other texturing materials and objects can be passed through the machine along with the clay. Slabs can be rolled either direction or reversed on all North Star machines.

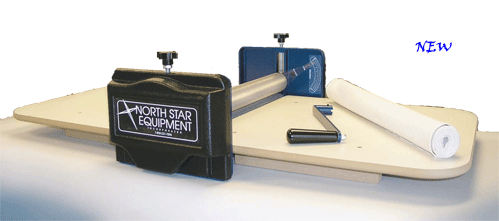

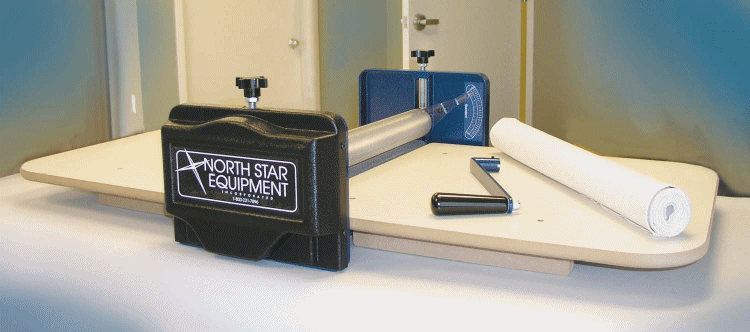

(PortaRoller - 18" wide) (Polaris CT-500 - 24" wide)

(Sirius Star 30 - 30" wide)


Porta Roller Polaris  CT-500

Sirius Star 30



CONSTRUCTION

The slab roller body and rolls are made of cast and carefully machined high-strength special alloy aluminum.  Gears are made of the strongest material available for this application, nylon or steel.  Bushings are nylon and the remaining parts (except plastic gear covers and knobs) are machined steel.  The Table Toppers are made of moisture-resistant medex with a melamine surface.  Metal surfaces are zinc plated or coated with a durable powder coat finish.   Virtually no maintenance is required, and the simplicity of the design ensures that any repair ever needed will be quick and easy


HIGH DESIGN & GREAT ADVANTAGES

  • Every part carefully designed and made for its intended purpose.  No off-the-shelf or inferior parts or material.

  • Rust free and virtually maintenance free.

  • No clumsy heavy shims or boards.

  • No chains, cables or cast-iron gears.

  • Thickness infinitely variable from 0 to 2-3/4 inches.

  • Slabs can be rolled in either direction and clay can be added or subtracted at any time.

  • Roll slabs up to 28" wide. The length of the slab is limited only by the space and canvas available.

  • Tapered slabs are quick, easy and precise.

  • Warping, curling and cracking are drastically reduced.

  • All machines accept press molds and a wide variety of texturing material such as burlap, plant materials, rope, cork and bark.
